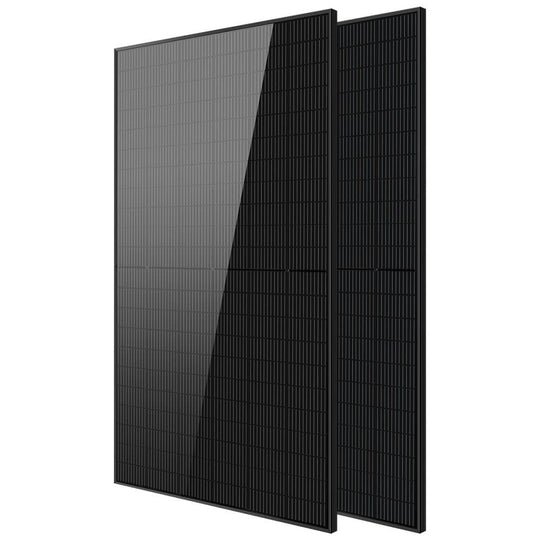

SunGoldPower 500W Mono Black PERC Solar Panel

SKU:

SG500WM

Brand:

Price range: $869.00 through $5,600.00

Ordering more than one product?
Add items to your cart
and click "Request A Bundle"
to secure the best price possible!

PRICE MATCH GUARANTEE

Contact us if you found a better deal anywhere else!

We’ll beat it!

Call Us

855-386-6669

Live Chat

100% US-based Support

Authorized
Dealer

Full Warranty &
Customer Service

Free
Shipping*

Available on
most items!

Best Pricing &
Product Support

Real Engineers.
Real Support.

Product Summary
  • 500W Monocrystalline (Mono) Solar Panel
  • PERC Half-Cut Technology (Efficiency > 20%)
  • Monofacial with Black Finish
  • IP68 with Waterproof Connectors
  • Rated to 5400 Pa (Snow Load) and 2400 Pa (Wind Pressure)
  • 12 year workmanship warranty
  • 25 year 80% output warranty
  • UL 61730 Certified
  Application
  • Ideal for off-grid, on grid or hybrid solar systems.
  • Supports use in residential households, RVs, tiny homes, marine vessels, and commercial buildings

Detailed Specifications
  • Peak Power Output (Pmax) = 500 W ± 3%
  • Max Power Current (Imp) = 13.30 A
  • Max Power Voltage (Vmp) = 37.60 V
  • Short-Circuit Current (Isc) = 14.09 A
  • Open Circuit Voltage (Voc) = 44.36 V
  • Weight = 56.2 lbs
  • Dimensions (inches) = 82.44″ x 44.65″ x 1.38″
  • Max System Voltage (VDC) = 1500 V


Off-Grid, Grid-Tied, and Hybrid System Support

This high-efficiency PERC Solar Panel supports on-grid & off-grid systems. This can be used for reducing power bills, storing energy in batteries for back-up, or powering a completely off-grid home.

415-01.jpg__PID:4b24737b-12c5-4f4a-b07d-c2b1bda5d259

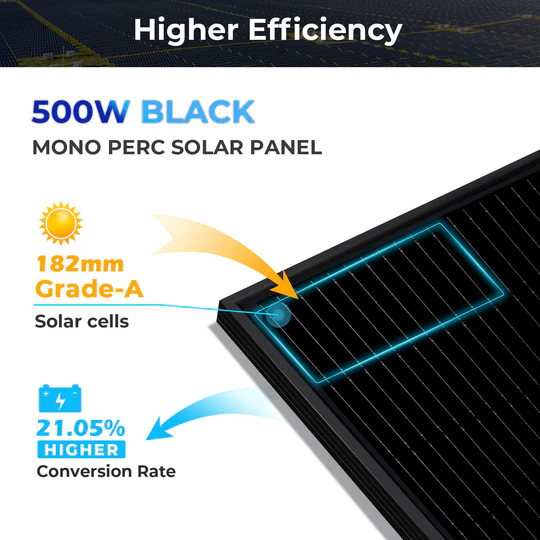

High-Efficiency

High-efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.

详情002.jpg__PID:46fbf983-f213-4c0c-904f-3349a8ce946a

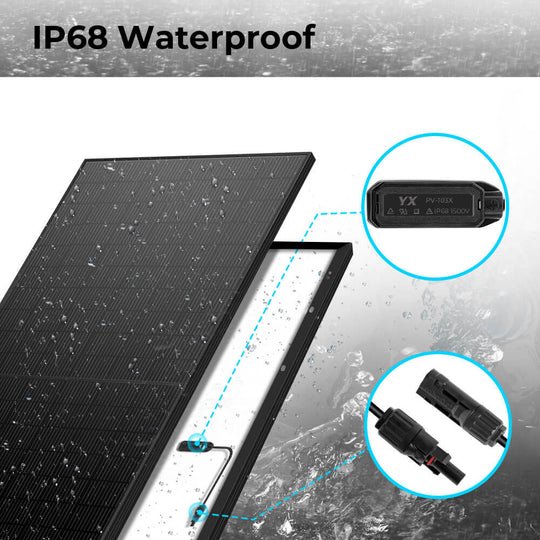

Waterproof

The solar junction box and solar connectors are IP68 rated, completely protecting from dust and providing function after temporary immersion in water (up to 1m deep).

详情03.jpg__PID:a4d82478-8ba1-48bc-a3fe-e263292db547

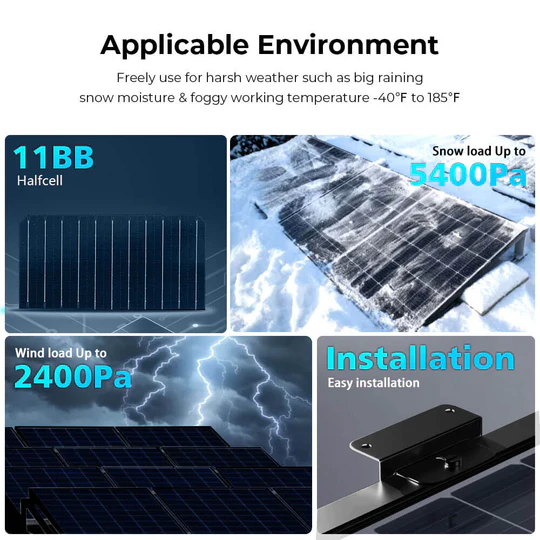

Snow & Wind Protection

Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure.


04-02.jpg__PID:788ba168-bc63-4ee2-a329-2db547a0418b
500W-A+05-合并CEC.jpg__PID:25ef15b7-42e3-4dcd-bf7c-d7afb15e9c40

Home Solar System

With balanced power, improved stability, and economical electricity costs.

详情05.jpg__PID:d824788b-a168-4c63-bee2-63292db547a0

Wide Application

Offering balanced power, improved stability, and economical electricity costs.

wide application

Additional information

Weight 56.2 lbs
Dimensions 82.44 × 44.65 × 1.38 in
Quantity

2pcs, 4pcs, 6pcs, 8pcs, 10pcs, 12pcs, 14pcs, 16pcs, 18pcs, 20pcs, Pallet
